We offer high-quality niobium plates, rods, and wires, widely used in aerospace, nuclear, electronics, and medical fields. Niobium plates feature excellent mechanical properties and corrosion resistance; niobium rods are known for their high strength and electrical conductivity; niobium wires are prized for their superior ductility and conductivity, making them ideal for electrodes and superconducting materials. Our niobium products are manufactured to industry standards, ensuring exceptional performance and reliability.
Recursos do produto:
- Alta pureza: Our niobium materials have a purity of up to 99.95%, ensuring outstanding performance in demanding applications.
- Alto ponto de fusão: Niobium has an extremely high melting point (2477°C), making it suitable for extreme high-temperature environments.
- Resistência à corrosão: Niobium has strong resistance to acids, alkalis, and other corrosive media, making it ideal for the chemical and electronics industries.
- Good Electrical and Thermal Conductivity: The electrical and thermal conductivity of niobium makes it excellent for electronic and electrical applications.
- High Strength and Toughness: Niobium materials possess excellent mechanical strength and toughness, suitable for high-pressure and high-load conditions.
Product Types:

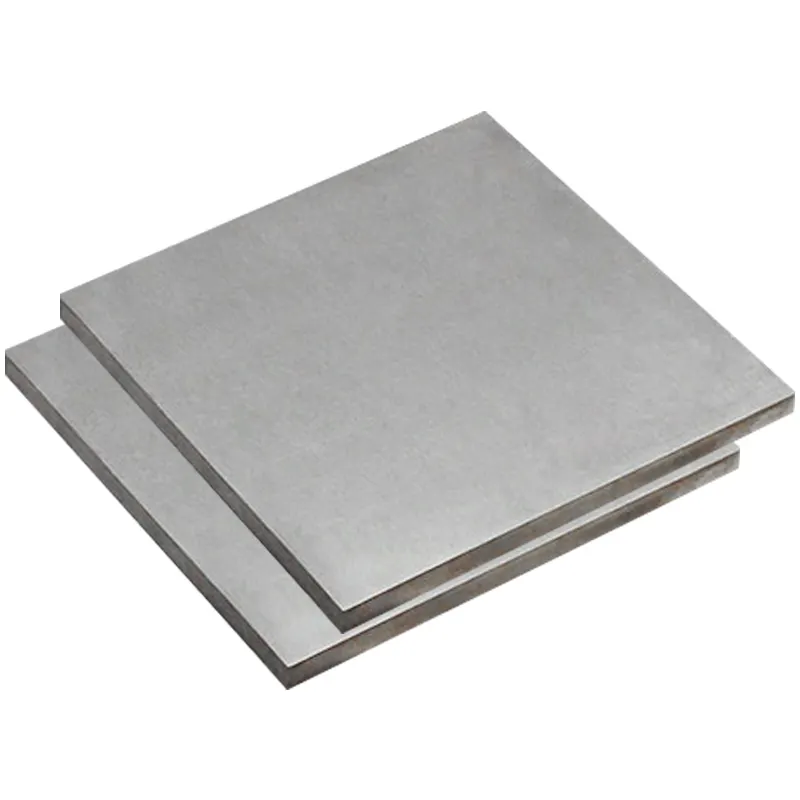

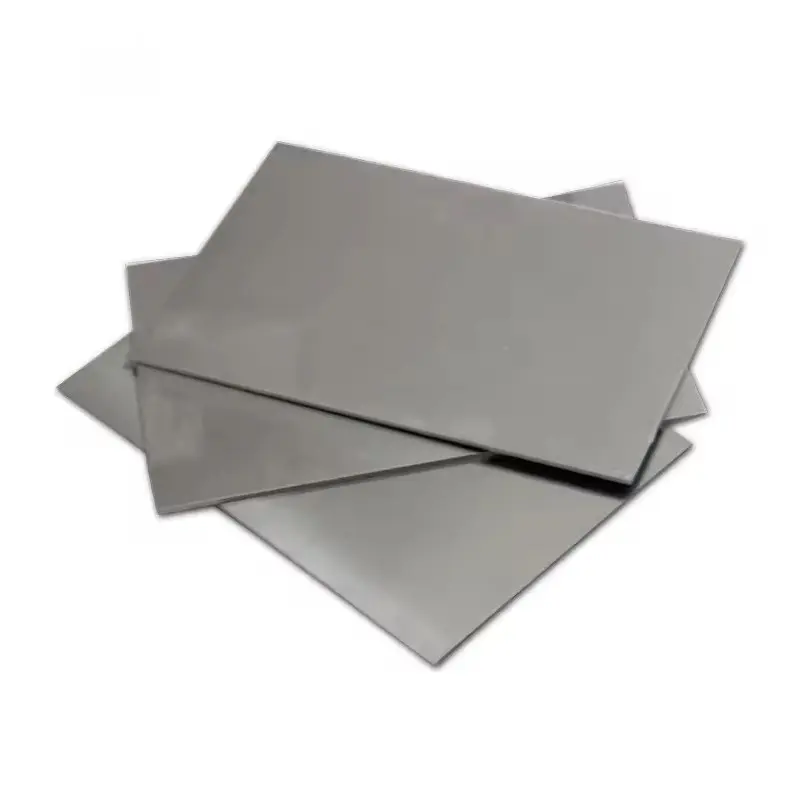

- Niobium Plate: Available in various specifications and thicknesses, niobium plates are suitable for manufacturing electronic components, chemical equipment linings, and aerospace components.

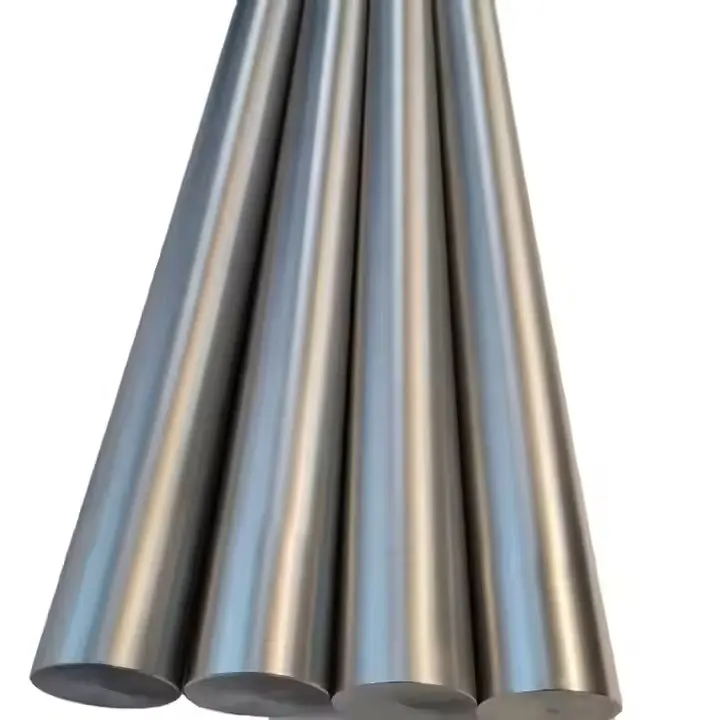

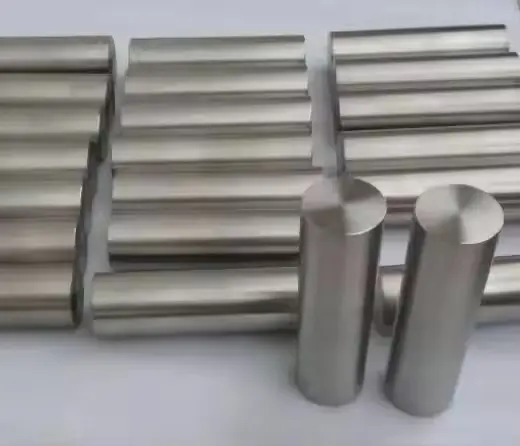

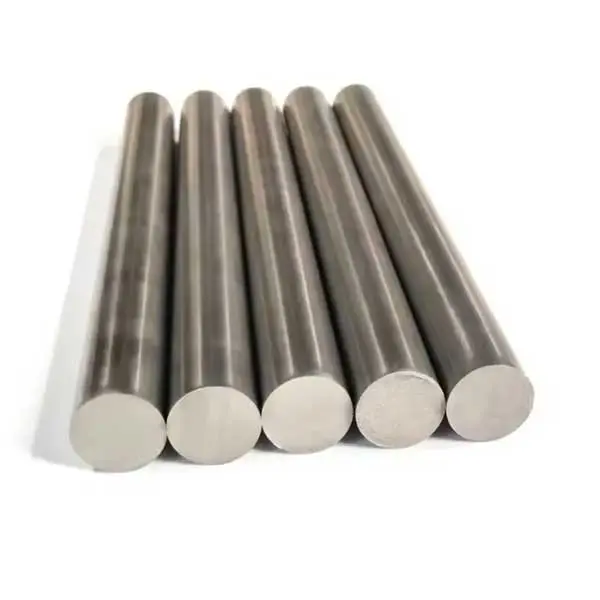

- Niobium Rod: Niobium rods, with high strength and good machinability, are widely used in mechanical parts, medical devices, and scientific research.
- Niobium Wire: Fine niobium wire, with high conductivity and good tensile strength, is used in electronic components, electrode materials, and woven wires.
Aplicações:
- Electronics Industry: Used for manufacturing capacitors, superconductors, and high-temperature furnace materials.
- Indústria química: Used for manufacturing reactors, heat exchangers, and corrosion-resistant parts.
- Aeroespacial: Used for manufacturing high-temperature, corrosion-resistant aerospace components.
- Dispositivos médicos: Used for making implants and other biocompatible materials.
- Scientific Research: Used in containers and tools for high-temperature melting and chemical experiments.
Especificações e tamanhos:
We offer niobium plates, rods, and wires in various specifications and sizes to meet different customer needs. Specific dimensions and specifications can be customized according to customer requirements.
Garantia de qualidade:
Each batch of niobium materials undergoes rigorous quality testing to ensure compliance with international standards. We are committed to providing high-quality, high-performance niobium products to meet customer demands in various challenging applications.
Niobium Plate Specifications
| Tipo | Thickness (mm) | Width (mm) | Length (mm) |
| Foil | 0.03-0.09 | 30-150 | >200 |
| Sheet | 0.1-0.5 | 30- 400 | 30-1000 |
| Plate | 0.5-10 | 30- 400 | 50-2000 |
Niobium Rod Specifications
Sizes/Tolerance(mm.max)
| Diameter | Diameter Tolerance | Comprimento | Tolerance | ||
| Rotary Forging Bar | Pull Rod | Car Rod | |||
| 2.0-4.0 | – | ±0.5 | – | 500-3000 | ±0.2 |
| ≥4.0-8.0 | ±0.06 | – | – | 50-3000 | ±0.2 |
| ≥8.0-12.0 | ±0.08 | – | – | 50-3000 | ±0.2 |
| ≥12.0-36 | ±0.1 | – | – | 50-1600 | ±0.2 |
| ≥36-50 | – | – | ±0.5 | 50-1400 | ±0.2 |
| ≥50-65 | – | – | ±0.5 | 50-1400 | ±0.2 |
Niobium Wire Specifications
| Diameter, Inch (mm) | Tolerance, +/-Inch (mm) |
| 0.010~0.020 (0.254~0.508) | 0.0005 (0.013) |
| 0.020~0.030 (0.508~0.762) | 0.00075 (0.019) |
| 0.030~0.060 (0.762~1.524) | 0.001 (0.025) |
| 0.060~0.090 (1.524~2.286) | 0.0015 ( 0.038) |
| 0.090~0.125 (2.286~3.175) | 0.002 (0.051) |
Chemical Composition of Niobium
| Nota | Major Components | Maximum Impurities (ppm) | ||||||||||
| Nb | Ta | E | Em | W | MO | De | Fe | Ó | C | H | N | |
| Nb1 | Equilíbrio | <700 | 50 | 50 | 50 | 30 | 20 | 50 | 150 | 40 | 15 | 30 |
| Nb2 | Equilíbrio | <1000 | 80 | 40 | 100 | 100 | 40 | 80 | 180 | 60 | 15 | 50 |
