Our high purity zirconium materials are widely used in various industrial and technological fields due to their exceptional physical and chemical properties. Zirconium is known for its excellent corrosion resistance, superior mechanical properties, and good thermal and electrical conductivity. We offer zirconium plates, rods, wires, and tubes, manufactured using advanced production processes to ensure stable and reliable quality, meeting the demands of various rigorous applications.
Product Features:
- High Purity: Our zirconium materials have a purity of up to 99.95%, ensuring outstanding performance in demanding applications.
- Corrosion Resistance: Zirconium has strong resistance to acids, alkalis, seawater, and other corrosive media, making it ideal for chemical and marine environments.
- High Strength and Toughness: Zirconium materials possess excellent mechanical strength and toughness, suitable for high-pressure and high-load conditions.
- Good Thermal and Electrical Conductivity: The thermal and electrical conductivity of zirconium makes it excellent for electronic and electrical applications.
- Biocompatibility: Zirconium materials are non-toxic and harmless to the human body, making them widely used in medical and bioengineering fields.
Product Types:
- Zirconium Plate: Available in various specifications and thicknesses, zirconium plates are suitable for manufacturing corrosion-resistant containers, high-temperature furnace linings, and nuclear reactor components.

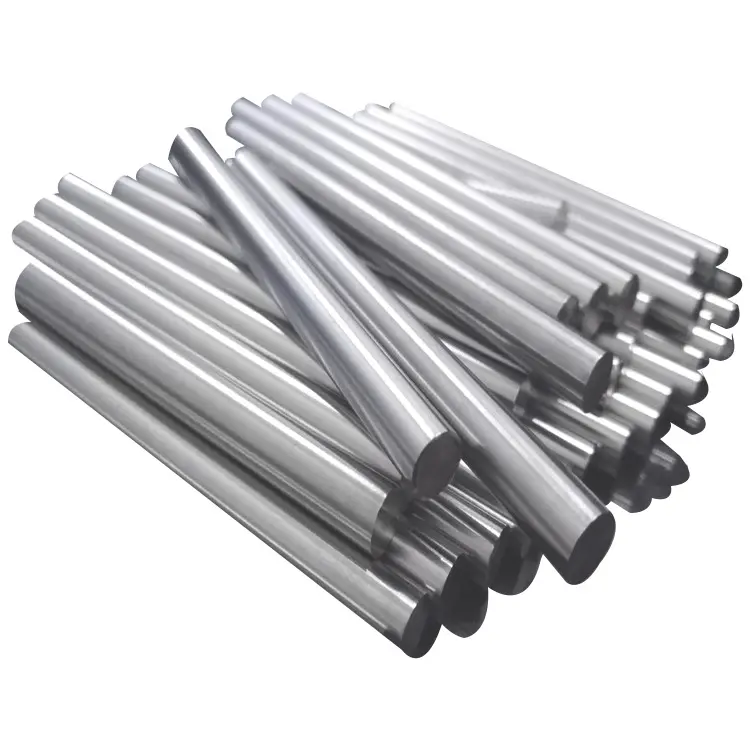

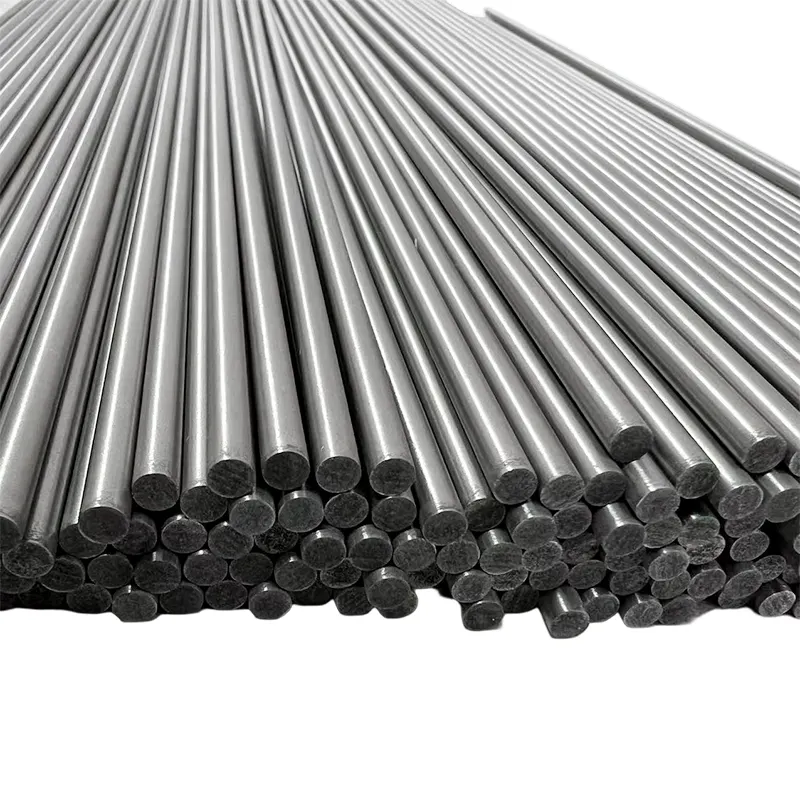

- Zirconium Rod: Zirconium rods, with high strength and good machinability, are widely used in mechanical parts, aerospace components, and medical devices.

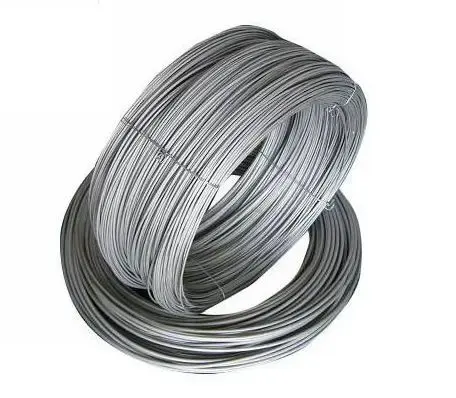

- Zirconium Wire: Fine zirconium wire, with high conductivity and good tensile strength, is used in electronic components, electrode materials, and woven wires.
- Zirconium Tube: High-precision zirconium tubes are suitable for chemical equipment piping, nuclear industry pipelines, and fluid transport in high-temperature and high-pressure environments.
Applications:
- Chemical Industry: Used for manufacturing corrosion-resistant parts of reactors, heat exchangers, pumps, and valves.
- Nuclear Industry: Used for nuclear reactor fuel cladding and structural components, with excellent radiation resistance.
- Aerospace: Used for manufacturing high-strength, high-temperature-resistant aerospace components.
- Medical Devices: Used for making surgical implants, prostheses, and biocompatible materials.
- Electronics and Electrical: Used for making electrodes, wires, and high-temperature resistance materials.
Specifications and Sizes:
We offer zirconium plates, rods, wires, and tubes in various specifications and sizes to meet different customer needs. Specific dimensions and specifications can be customized according to customer requirements.
Quality Assurance:
Each batch of zirconium materials undergoes rigorous quality testing to ensure compliance with international standards. We are committed to providing high-quality, high-performance zirconium products to meet customer demands in various challenging applications.
Chemical Composition of Zirconium
| Grade | Element Composition (%) < | ||||||||
| Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | Nb | O | |
| R60702 | 99.2 | 4.5 | 0.2 | — | 0.005 | 0.025 | 0.05 | — | 0.16 |
| R60703 | 98 | 4.5 | — | — | 0.005 | 0.025 | — | — | — |
| R60704 | 97.5 | 4.5 | 0.20~0.40 | 1.0~2.0 | 0.005 | 0.025 | 0.05 | — | 0.18 |
| R60705 | 95.5 | 4.5 | 0.2 | — | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 |
| R60706 | 95.5 | 4.5 | 0.2 | — | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.16 |
Specifications of Zirconium Plate
| Standard | ASTM B551 |
| Grade | R60702, R60704, R60705 |
| Thickness | 0.5mm – 50 mm |
| Width | 10mm – 2500mm |
| Technology | Hot-rolled, cold-rolled, hot forging, machining |
| Condition | Annealed (M),cold rolled(Y), hot rolled(R) , quenching(C) |
| Surface | Chemically cleaning or machined to be bright. Dependent on different thicknesses. |
Specifications of Zirconium Bar
| Size | Dia.: 5 mm – 400 mm |
| Material | R60702, R60704, R60705 |
| Standard | ASTM B550, ASTM B351 |
| Surface | Black, pickling, sand-blasting, polished |
| Condition | Cold rolled(Y), hot rolled(R), annealed (M), quenching (C) |
| Shape | Square bar, round bar, hexagonal bar, etc. |
Specifications of Zirconium Wire
| Standard | ASTM B550, ASTM B351 |
| Grade | R60702, R60704, R60705 |
| Technique | Hot rolled, cold rolling, annealing |
| Straight | Dia.: 1.0mm-5.0mm |
| Coiled | Dia.: 0.05mm-3.0mm |
| Length | Coils or customers’ requests |
| Surface | Black, pickled, polished ( For diameter >1mm ) |
Specifications of Zirconium Tube
| Technique | Zirconium welded tube, zirconium seamless tube |
| Grade | R60702, R60704, R60705 |
| Standard | ASTM B523, ASTM B353, ASTM B658 |
| Size | OD(0.5-200)mm*WT(0.1-20)mm*L(MAX 20000)mm |
| Shape | Round, square |
| Surface | Polished or according to customer’s requirement |
| Processing | Hot rolling, cold rolling, drawing, extruding |
